Introduction

- It consists of Insulated trolley bar/4.5m/pc, End Cap, Hanger Clamp, Joint Cover, Joint keeper, Expansion section, Power collector, Hanger or, Power Feeder, etc. with Insulated 200A-1450A

- We can supply the bus bar system (conductor bar) from 60A to 3000A, in form of plastic, aluminum and copper material.

- Conductor bar systems are used for the electrification of mobile equipment. Conductor bar is a safe, economical and low maintenance way to solve mobile electrification requirement.

- Conductor bar is used for gantry cranes, overhead cranes, hoists, trolleys, conveyors, port cranes and people movers, etc.

-Ambient temperature：Conductor bar PVC: -15℃—55℃；PPO -127℃—121℃；PC: -60℃—120℃；

-Copper conductor bar,Aluminum/stainless steel conductor bar,Rigid conductor bar can use in outdoor and outdoor .Degree of protection：IP23

Mechanical and electrical performance	Conductor bar specification
Model specification	630A	800A	1000A	1250A	1450A
Conductor raw material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Conductor materials grades	6063A	6063A	6063A	6063A	6063A
Conductor cross-sectional area	320	410	520	650	760
Standard length	6	6	6	6	6
Conductor lines distance	70	70	70	70	70
CTE	0.0000235	0.0000235	0.0000235	0.0000235	0.0000235
Conductor lines insulator materials	PVC	PVC	PVC	PVC	PVC
Hanging bracket raw material	ABS	ABS	ABS	ABS	ABS
Applicable to temperature range	-35～＋85	-35～＋85	-35～＋85	-35～＋85	-35～＋85



Accessory:

1、Current collector

2、Hanger clamp

3、Fixation clamp

4、Angle steel bracket

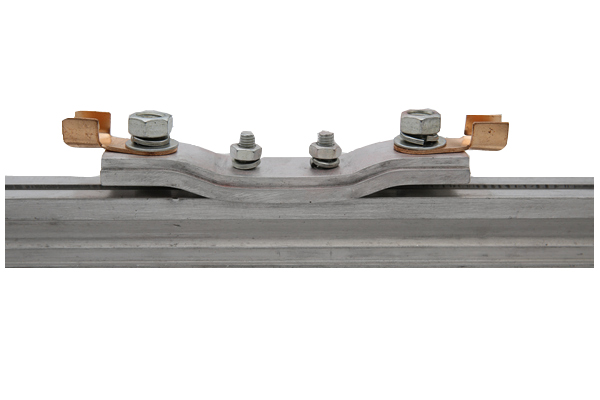

5、Junction plate

6、Joint protective sleeve

7、Power input section

8、Expansion Parts

9、End cap

10、LED light
